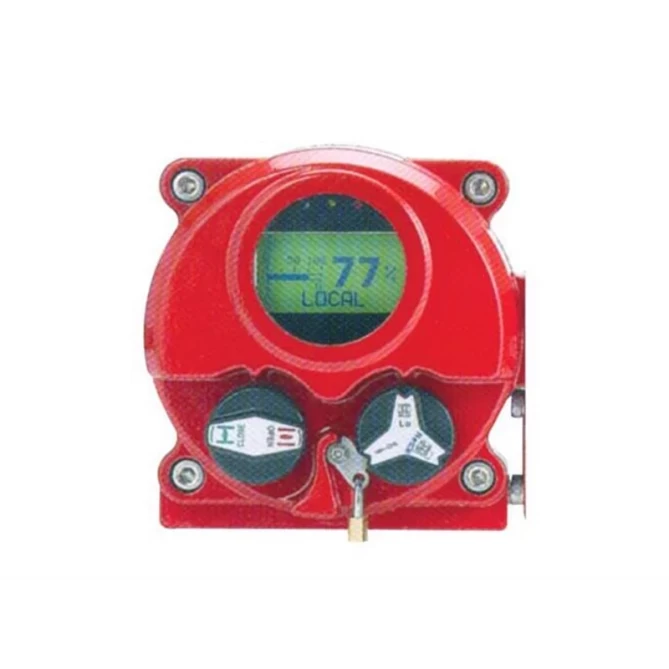

TORK-SICU Smart Control Unit

Materials : Steel, aluminium alloy, al-bronze, polycarbonate.

Enclosure : Weatherproof enclosure IP67, NEMA 4 and 6. space heater 7…10W (110/220V AC) anti-condensation.

Manuel Override : Declutching mechanism located outside the body.

Power Supply : 220V AC, 1PH (on request 110/380/440 V AC three-phase circuit)

Motor : Squirrel caged inducation, reversible

Limit Switch : 2 x open / close, SPDT, 250 V AC, 10A rating (on request additional +2 switches)

Torques Switch : Open / close, SPDT, 250 V AC

Indicator : 10A rating (except HQ-008) continuous position indicator

Flange Connection : ISO5211 standard (F03/F05/F07)

Open and Close Time : 13 - 37 seconds

Applied with REA 150 … REA 3000 series.

110 V AC / 220 V AC mono-phase.

3800 V AC three-phase.

Phase protect monitoring by LED in case of wrong wiring.

Working led on SICU panel on actuator for monitoring on-off and failure mode.
