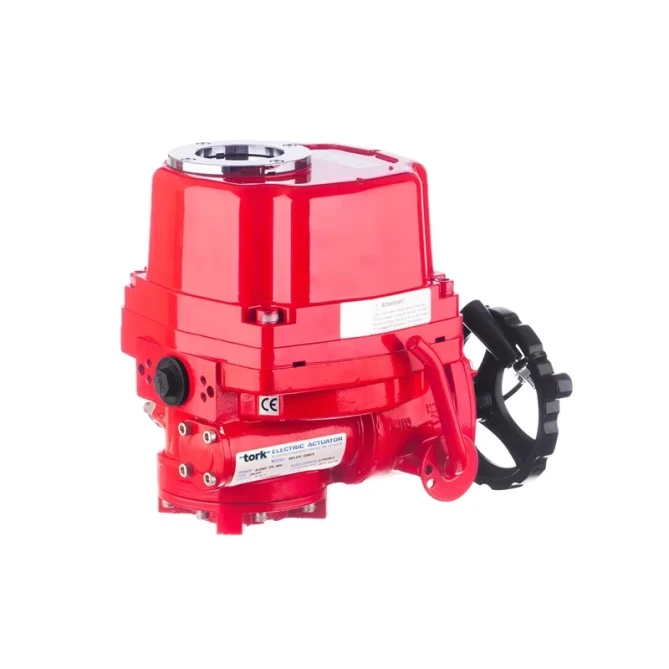

TORK-REA 80..1200 Series On/Off Rotary Electric Actuator

Materials : Steel, aluminium alloy, al-bronze, polycarbonate.

Torque Output : 80 Nm … 1200 Nm

Enclosure : Weatherproof enclosure IP67, NEMA 4 and 6. space heater 7..10W (110/220 V AC) anti-condensation. (Optional IP68)

Travel Angle : 90° ± 10° (0° … 110°)

Manuel Override : Declutching mechanism located outside the body.

Power Supply : 220 V AC, 1PH (on request 110/380/440 V AC three-phase circuit)

Motor : Industion Motor, reversible

Limit Switches : 2 x open / close, SPDT, 250 V AC, 10A rating (on request additional +2 switches)

Torque Switch : Open / close, SPDT, 250 V AC

Indicator : 10 A rating (except HQ-008 continuous position indicator)

Mechanical Stopper : 2 x external adjustable screws

Ambient Humidity : %90 RH Max. (non-condensing)

Ambient Temp : -20°C … 70°C (except option electronic board)

Cable Connection : Three PF3/4" Tap (Standart Type Only)

Flange Connection : ISO 5211 standard (F03/F05/F07)

Open and Close Time : 13-37 seconds.

PRODUCT CATALOG

GET OFFER

Product Features
Product Description

Type No	Torque Value	Working Voltage	Control	On-Off Time	Valve Flange Con.	Weight
Type No	(Nm)	Working Voltage	Control	On-Off Time	Valve Flange Con.	(Kg)
TORK REA 80	80	220 V 50/60 Hz	On/Off	13...16 Sec	F07	7.4
TORK REA 100	100	220 V 50/60 Hz	On/Off	16...20 Sec	F07	7.4
TORK REA 150	150	220 V 50/60 Hz	On/Off	21...25 Sec	F07/F10	16.6
TORK REA 200	200	220 V 50/60 Hz	On/Off	21...25 Sec	F07/F10	16.6
TORK REA 300	300	220 V 50/60 Hz	On/Off	26...31 Sec	F10/F12	22
TORK REA 500	500	220 V 50/60 Hz	On/Off	26..31 Sec	F10/F12	23
TORK REA 600	600	220 V 50/60 Hz	On/Off	26..31 Sec	F10/F12	23
TORK REA 800	800	220 V 50/60 Hz	On/Off	31...37 Sec	F12/F14	29
TORK REA 1200	1200	220 V 50/60 Hz	On/Off	31...37 Sec	F12/F14	29

Optional:
EXA Exproof Body (Eexd II B T4)	: REA Series
WTA Under Water Working Actuator Body (IP 68 10M 72HR)	: REA Series
PCU SSR Type Proportional Control Card (Input Signal 4.20 mA DC)	: REA Series
CPT Position Transmitter (Output Signal 4-20mA DC)	: REA Series
PIU Potantial Meter Unit (1-1 k Ohm)	: REA Series
ATS Extra TORK Switch (SPDT x 2 EA 250V AC 10A )	: REA 80 - except 100
EXT Ek 120° 180° 270° Return	: REA Series
ADCM 24 AC/DC Unit	: REA Series
FPA1 Explosion Proof Actuator 1050° / 50 min	: REA Series

Type No	AC Wiring Diagram	DC Wiring Diagram	3 Phase Wiring Diagram
TORK REA 80	REA-80 100 230V_AC_On-Off	REA-80-100_24V_AC-DC	REA-80-100 3Ph AC
TORK REA 150	REA-150-3000_230V AC-On_Off	REA-150-300 24 V AC-DC-On-Off	REA-150-3000_380 V AC 3Ph On-Off
TORK REA 200	REA-150-3000_230V AC-On_Off	REA-150-300 24 V AC-DC-On-Off	REA-150-3000_380 V AC 3Ph On-Off
TORK REA 300	REA-150-3000_230V AC-On_Off	REA-150-300 24 V AC-DC-On-Off	REA-150-3000_380 V AC 3Ph On-Off
TORK REA 500	REA-150-3000_230V AC-On_Off	-	REA-150-3000_380 V AC 3Ph On-Off
TORK REA 600	REA-150-3000_230V AC-On_Off	-	REA-150-3000_380 V AC 3Ph On-Off
TORK REA 800	REA-150-3000_230V AC-On_Off	-	REA-150-3000_380 V AC 3Ph On-Off
TORK REA 1200	REA-150-3000_230V AC-On_Off	-	REA-150-3000_380 V AC 3Ph On-Off

Electric actuators are among the most used control elements in valve control. Electric actuators are used to control many valves such as ball valves, butterfly valves and plug valves.

REA Series Electric Actuators have small, light and compact design. It has a corrosion resistant polyester painted body. Different torque options are available up to 40 Nm… 3000 Nm. There are on-off and proportional models.
