API 6D Series Pipeline Ball Valves

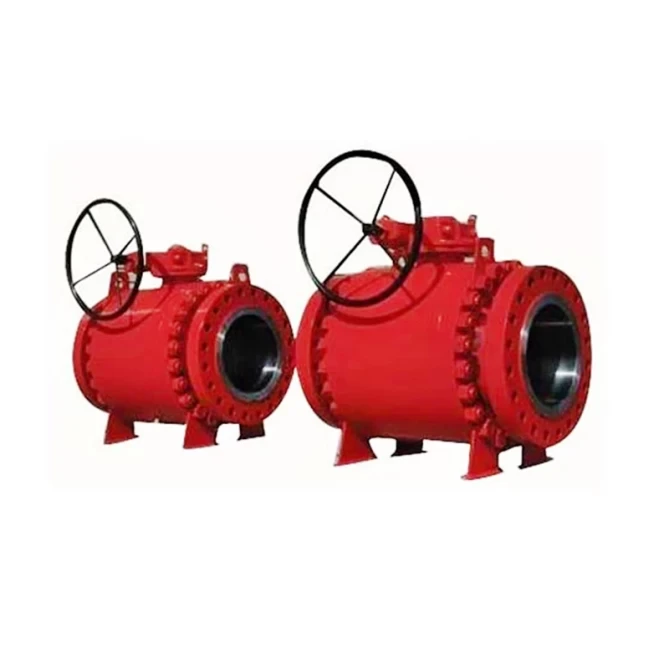

TORK-KV 917. API 6D, Class 150–600, PN20–150 Ball Valves
Applications: Natural gas, LNG, LPG, fuel oil, pressure vessels, and other gases
Size: Manufactured in sizes from DN 15 to DN 300
Design: API 6D, ISO 14313
Connection: Flanged ASME B 16.5
Dimensions: ASME B 16.10
Operating Temperature: -30°C to 180°C
Pressure Class:
Class 150, PN20, 20 Bar, DN15–DN300
Class 300, PN50, 50 Bar, DN15–DN300
Class 600, PN100, 100 Bar, DN15–DN300
Class 900, PN150, 150 Bar, DN15–DN200
Control Type: Manual, electric actuator, or pneumatic actuator
Ordering: When ordering, specify the valve class, type of fluid, pressure, control type, valve size, fluid temperature, and method of control.
