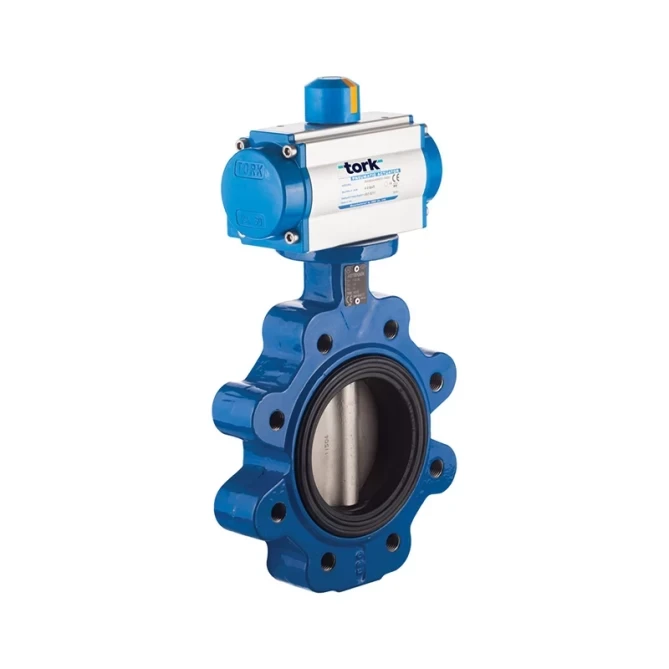

TORK-PAV 803 Pneumatic Actuated Lug Type Butterfly Valve

Application : Liquid, gas, air, water, hot water, steam, Natural gas, LPG Gas

Type No : PAV 803...DA / PAV 803…SR

Actuator : RA…DA Double Acting Actuators/ RA…SR Single Acting Actuators

On Request : Limit switch box, positioner, namur solenoid valve, manuel override

Size : DN50 … DN600

Supply Air : 4-6 bar, Stroke adjustment

Valve Code : TORK-KV.W 1140

Valve Body Materials : GG-25 Cast Iron with Epoxy or Rilsan coated

Disc Materials : AISI 316 or GGG 50 Sphero Casting

Seat : EPDM , NBR ,NR , Silicone,Viton , PTFE

Pressure : PN10, PN16

Size

Model No

Butterfly Valve Type

Disc

Sealing

DN25PAV803.25 DA/SRTORK-KV.L1140.25AISI 316EPDM
DN32PAV803.32 DA/SRTORK-KV.L1140.26AISI 316EPDM
DN40PAV803.40 DA/SRTORK-KV.L1140.27AISI 316EPDM
DN50PAV803.50 DA/SRTORK-KV.L1140.28AISI 316EPDM
DN65PAV803.65 DA/SRTORK-KV.L1140.29AISI 316EPDM
DN80PAV803.80 DA/SRTORK-KV.L1140.30AISI 316EPDM
DN100PAV803.100 DA/SRTORK-KV.L1140.31AISI 316EPDM
DN125PAV803.125 DA/SRTORK-KV.L1140.32AISI 316EPDM
DN150PAV803.150 DA/SRTORK-KV.L1140.33AISI 316EPDM
DN200PAV803.200 DA/SRTORK-KV.L1140.34AISI 316EPDM
DN250PAV803.250 DA/SRTORK-KV.L1140.35AISI 316EPDM
DN300PAV803.300 DA/SRTORK-KV.L1140.36AISI 316EPDM
DN350PAV803.230 DA/SRTORK-KV.L1140.37AISI 316EPDM
DN400PAV803.400 DA/SRTORK-KV.L1140.38AISI 316EPDM
DN450PAV803.450 DA/SRTORK-KV.L1140.39AISI 316EPDM
DN500PAV803.500 DA/SRTORK-KV.L1140.40AISI 316EPDM
DN600PAV803.600 DA/SRTORK-KV.L1140.41AISI 316EPDM
