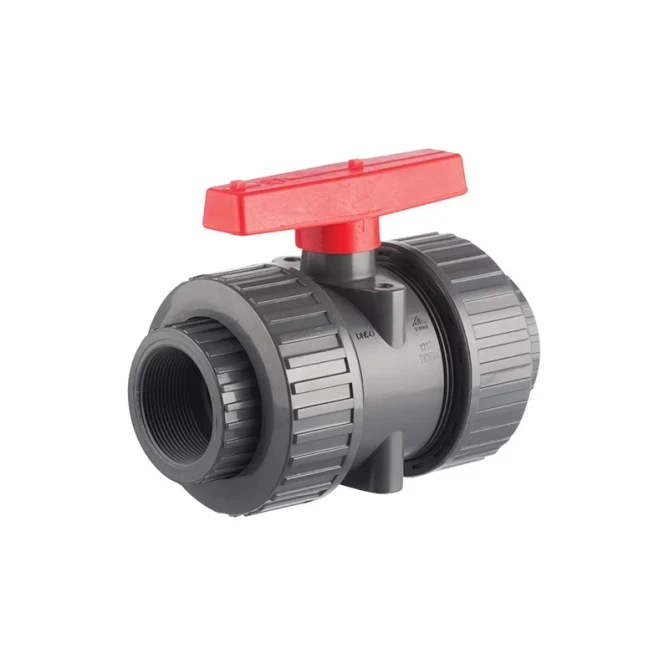

TORK-KV 913-2 Series PVC Ball Valve Threaded 2/2 Way gallery image 1
TORK-KV 913-2 Series PVC Ball Valve Threaded 2/2 Way gallery image 1

TORK-KV 913-2 Series PVC Ball Valve Threaded 2/2 Way

Ball valves for water: PN10 bar, Sealing:HDPE, O-ring :EPDM

Size

NW (mm)

D Diameter

Type No

Way

Pressure

Temperature

1/2"

NW15

20

T-KV913.15

2/2

0-16 bar

0..45 C

3/4"

NW20

25

T-KV913.20

2/2

0-16 bar

0..45 C

1"

NW25

32

T-KV913.25

2/2

0-16 bar

0..45 C

11/4"

NW32

40

T-KV913.32

2/2

0-16 bar

0..45 C

11/2"

NW40

50

T-KV913.40

2/2

0-16 bar

0..45 C

2"

NW50

63

T-KV913.50

2/2

0-16 bar

0..45 C

21/2"

NW65

75

T-KV913.65

2/2

0-10 bar

0..45 C

3"

NW80

90

T-KV913.80

2/2

0-10 bar

0..45 C

4"

NW100

110

T-KV913.100

2/2

0- 2 bar

0..45 C

Application : Water, Acid
Valve Body Material : PVC
Connection : Threaded BSP ( on request NPT)
Pressure : PN10,PN16
Temperature : 45°C
Size : 1/2" … 3"
Seat : EPDM
Operation : Free Shaft for actuator mounting or Handlevel
(ISO 5211 Mounting Pad enables to install actuator directly)
