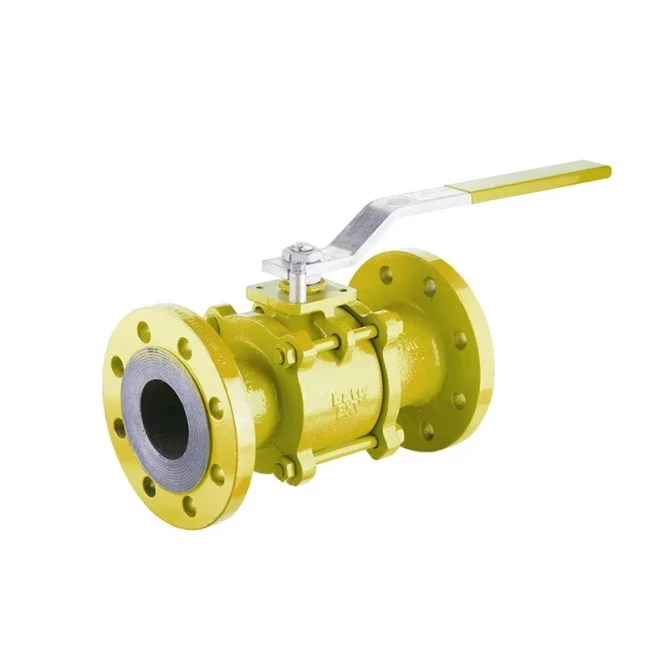

TORK-KV 912F Series Carbon Steel Ball Valve Flanged 2/2 Way

Size

Code No

Way

Pressure

Temperature

ISO Connection

NW15

TORK-KV912F.15

2/2

0-40 bar

-30..180 C

F03

NW20

TORK-KV912F.20

2/2

0-40 bar

-30..180 C

F03

NW25

TORK-KV912F.25

2/2

0-40 bar

-30..180 C

F03 /F04

NW32

TORK-KV912F.32

2/2

0-40 bar

-30..180 C

F04 /F05

NW40

TORK-KV912F.40

2/2

0-40 bar

-30..180 C

F04 /F05

NW50

TORK-KV912F.50

2/2

0-40 bar

-30..180 C

F05

NW65

TORK-KV912F.65

2/2

0-40 bar

-30..180 C

NW80

TORK-KV912F.80

2/2

0-40 bar

-30..180 C

NW100

TORK-KV912F.100

2/2

0-40 bar

-30..180 C

Application : Natural Gas, LPG-LNG,Fuel Oil,Compressed Air, Gases
Valve Body Material : Carbon Steel
Connection : Flanged
Pressure : PN40
Temperature : .-30°C / +180°C
Size : DN15 - DN200
Seat : PTFE
Operation : Handlevel or Free Shaft for actuator mounting
