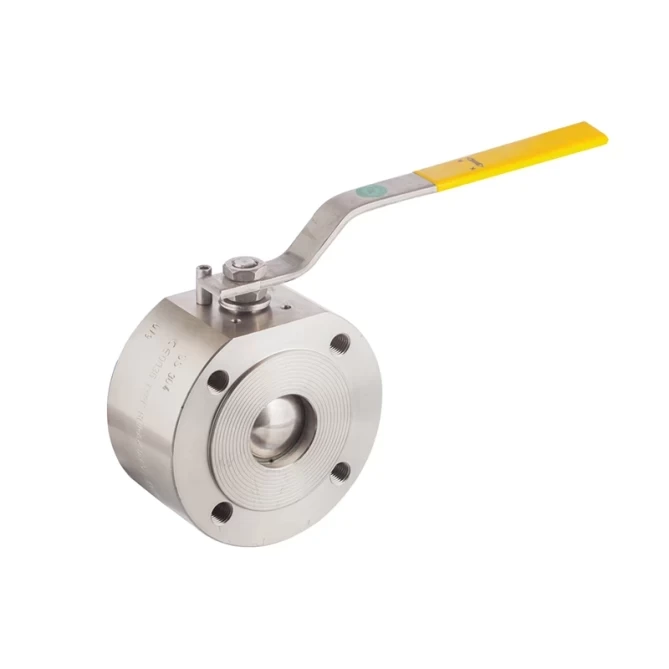

TORK-KV 909 Series Monoblock Stainless Steel Ball Valve 2/2 Way

TORK-KV 909 Series Stainless Steel Monoblock Valves, Free Shaft

Size

Type No

Way

Pressure

Temperature

Connection

NW15

TORK-KV909.15

2/2

0-40 bar

-30..180 C

with mounting parts

NW20

TORK-KV909.20

2/2

0-40 bar

-30..180 C

with mounting parts

NW25

TORK-KV909.25

2/2

0-40 bar

-30..180 C

with mounting parts

NW32

TORK-KV909.32

2/2

0-40 bar

-30..180 C

with mounting parts

NW40

TORK-KV909.40

2/2

0-40 bar

-30..180 C

with mounting parts

NW50

TORK-KV909.50

2/2

0-40 bar

-30..180 C

with mounting parts

NW65

TORK-KV909.65

2/2

0-40 bar

-30..180 C

with mounting parts

NW80

TORK-KV909.80

2/2

0-40 bar

-30..180 C

with mounting parts

NW100

TORK-KV909.100

2/2

0-40 bar

-30..180 C

with mounting parts

TORK-KV 909K Series Stainless Steel Monoblock Valves, Handlevel

Size

Type No

Way

Pressure

Temperature

Operation

NW15

TORK-KV909K.15

2/2

0-40 bar

-30..180 C

Handlevel

NW20

TORK-KV909K.20

2/2

0-40 bar

-30..180 C

Handlevel

NW25

TORK-KV909K.25

2/2

0-40 bar

-30..180 C

Handlevel

NW32

TORK-KV909K.32

2/2

0-40 bar

-30..180 C

Handlevel

NW40

TORK-KV909K.40

2/2

0-40 bar

-30..180 C

Handlevel

NW50

TORK-KV909K.50

2/2

0-40 bar

-30..180 C

Handlevel

NW65

TORK-KV909K.65

2/2

0-40 bar

-30..180 C

Handlevel

NW80

TORK-KV909K.80

2/2

0-40 bar

-30..180 C

Handlevel

NW100

TORK-KV909K.100

2/2

0-40 bar

-30..180 C

Handlevel

Application : Water , Hot Water , Corrosive liquids,

Valve Body Material : Stainless Steel (AISI 304SS & AISI 316SS)

Connection : DIN 2545 - 2635 ( EN 1092-1 )

Pressure : PN40

Temperature : .-30°C / +180°C

Size : DN15 - DN150

Seat : PTFE, Burgman, Viton

Operation : Handlevel or Free Shaft for actuator mounting
