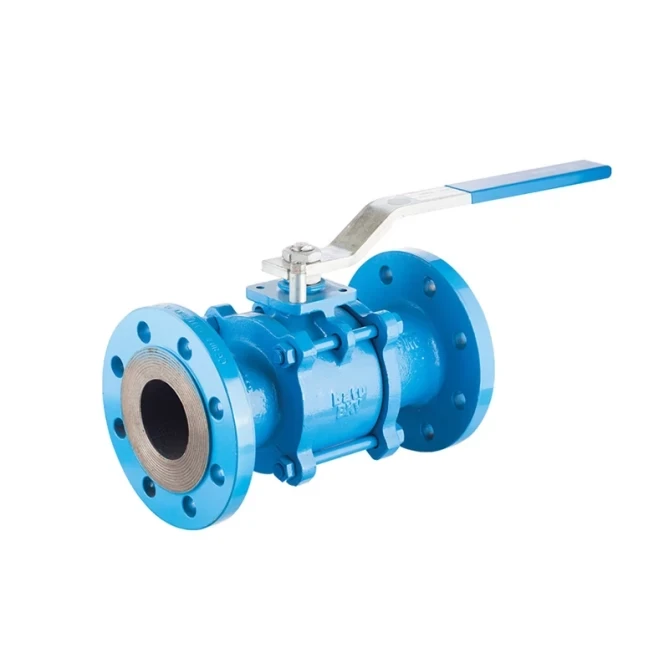

TORK-KV 907F Series Carbon Steel Ball Valve Flanged 2/2 Way

Size

Type No

Way

Pressure

Temperature

ISO Connection

NW15

TORK-KV907F.15

2/2

0-16 bar

-30..180 C

F03

NW20

TORK-KV907F.20

2/2

0-16 bar

-30..180 C

F03

NW25

TORK-KV907F.25

2/2

0-16 bar

-30..180 C

F03 /F04

NW32

TORK-KV907F.32

2/2

0-16 bar

-30..180 C

F04 /F05

NW40

TORK-KV907F.40

2/2

0-16 bar

-30..180 C

F04 /F05

NW50

TORK-KV907F.50

2/2

0-16 bar

-30..180 C

F05

NW65

TORK-KV907F.65

2/2

0-16 bar

-30..180 C

NW80

TORK-KV907F.80

2/2

0-416ar

-30..180 C

NW100

TORK-KV907F.100

2/2

0-16 bar

-30..180 C

NW125

TORK-KV907F.125

2/2

0-16 bar

-30..180 C

NW150

TORK-KV907F.150

2/2

0-16 bar

-30..180 C

NW200

TORK-KV907F.200

2/2

0-16 bar

-30..180 C

Application : Water, Hot Water, Steam , Compressed air and Non-combustible gases

Valve Body Material : Carbon Steel

Connection : Flanged

Pressure : PN40 ( PN 25 with Ductile Iron Body )

Temperature : .-30°C / +180°C

Size : DN15 - DN300

Seat : PTFE

Operation : Handlevel or Free Shaft for actuator mounting
