TORK-KV 906 2 Pieces Ball Valve

TORK-KV 906 2 Pieces Ball Valve gallery image 1
TORK-KV 906 2 Pieces Ball Valve gallery image 1

TORK-KV 906 2 Pieces Ball Valve

GET OFFER

Valve Size

Order No

Way

Pressure

Temperature

1/2"

TORK-KV906.15

2

0-63 bar

0..180 C

3/4"

TORK-KV906.20

2

0-63 bar

0..180 C

1"

TORK-KV906.25

2

0-63 bar

0..180 C

11/4"

TORK-KV906.32

2

0-63 bar

0..180 C

11/2"

TORK-KV906.40

2

0-63 bar

0..180 C

2"

TORK-KV906.50

2

0-63 bar

0..180 C

21/2"

TORK-KV906.65

2

0-63 bar

0..180 C

3"

TORK-KV906.80

2

0-63 bar

0..180 C

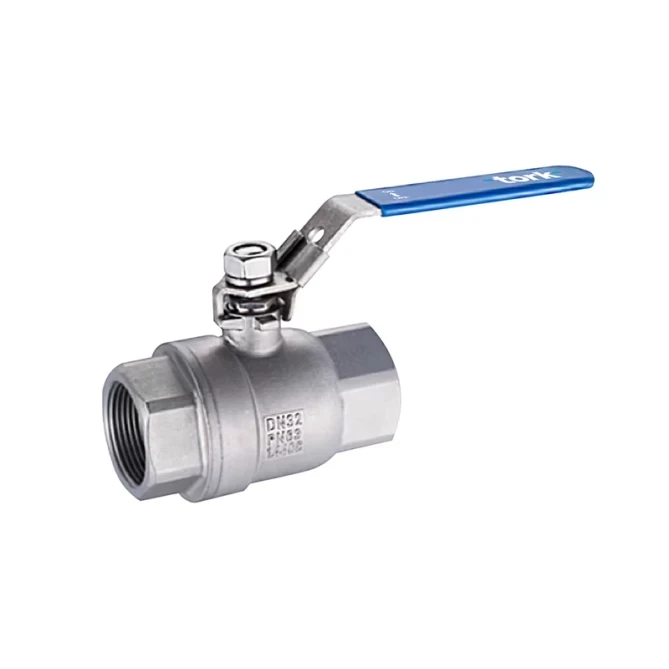

TORK Ball Valve TORK-KV 906 series 2 pieces stainless steel body, threaded connection and with handlevel

TORK Ball Valve Features

Application : Cold water, hot water, aggressive fluids, steam, oil, air, gas

Product Code : TORK-KV 906

Body : 304/316 stainless

Way : 2 way, it can be installed in any position and allows flow passage in two directions.

O-ring : PTFE around the sphere and the throat o-ring (two pieces) PTFE + elastomer.

Pressure : It is designed for low pressure and high pressure.

Working Temperature : -20....180 C

Working Pressure : PN 63 bar(1/2"..3")

Test : All valves are tested at 20 bar for 48 hours
