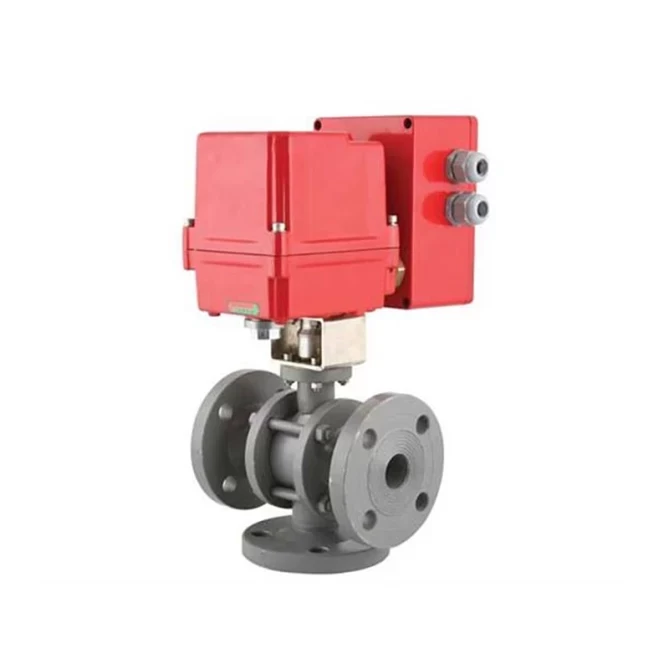

TORK-EAV 908 Electric Actuated Carbon Steel Flanged Connection Ball Valve

TORK-EAV 908 Electric Actuated Carbon Steel Flanged Connection Ball Valve gallery image 1
TORK-EAV 908 Electric Actuated Carbon Steel Flanged Connection Ball Valve gallery image 1

TORK-EAV 908 Electric Actuated Carbon Steel Flanged Connection Ball Valve

GET OFFER

TORK-EAV 908 On-Off Electric Actuated Carbon Steel Ball Valve, 3/2 way Flanged

Size

Type No

Way

Pressure

Temperature

ISO Connection

1/2"

T-EAV908.15

3/2

0-40 bar

0..150 C

F03

3/4"

T-EAV908.20

3/2

0-40 bar

0..150 C

F03

1"

T-EAV908.25

3/2

0-40 bar

0..150 C

F03 /F04

1 1/4"

T-EAV908.32

3/2

0-40 bar

0..150 C

F04 /F05

1 1/2"

T-EAV908.40

3/2

0-16 bar

0..150 C

F04 /F05

2 1/2"

T-EAV908.65

3/2

0-16 bar

0..150 C

F05

3"

T-EAV908.80

3/2

0-16 bar

0..150 C

4"

T-EAV908.100

3/2

0-16 bar

0..150 C

5"

T-EAV908.125

3/2

0-16 bar

0..150 C

6"

T-EAV908.150

3/2

0-16 bar

0..150 C

TORK-EAV 908P Electric Actuated Carbon Steel Ball Valve, 3/2 way Flanged

Size

Type No

Way

Pressure

Temperature

ISO Connection

1/2"

T-EAV908P.15

3/2

0-40 bar

0..150 C

F03

3/4"

T-EAV908P.20

3/2

0-40 bar

0..150 C

F03

1"

T-EAV908P.25

3/2

0-40 bar

0..150 C

F03 /F04

1 1/4"

T-EAV908P.32

3/2

0-40 bar

0..150 C

F04 /F05

1 1/2"

T-EAV908P.40

3/2

0-16 bar

0..150 C

F04 /F05

2 1/2"

T-EAV908P.40

3/2

0-16 bar

0..150 C

F05

3"

T-EAV908P.40

3/2

0-16 bar

0..150 C

4"

T-EAV908P.40

3/2

0-16 bar

0..150 C

5"

T-EAV908P.40

3/2

0-16 bar

0..150 C

6"

T-EAV908P.40

3/2

0-16 bar

0..150 C

Control Type : On-off (optional proportional except REA 40 &REA 80 )

Power Supply : 220 V AC, (on request 24 V DC, 380 VAC)

On-Off Time : 12sn....34sn (50/60Hz)

Output Torque : 40 Nm…30 Nm

Protection Class : IP67

Working Pressure : .-20°C …70°C

ISO Connection : ISO5211standart F03/F05/F07

Optional : LCU Local Control Unit , PIU potentiometer ,CPT Current Position Transmitter

TORK-KV 908 Ball Valve Details

Body : Full Bore, Carbon Steel , 3 pcs body, Flanged

Connection Sizes : DN15…DN200

Actuator Selection : REA 40 (DN15) , REA 60 (DN20... DN 40),REA 80 (DN 50, DN65) ,REA150 (DN80,DN100), REA 200 (DN125), REA 600(DN150),REA1200 (DN 200)

Operation : 3/2 Way

O-ring : PTFE

Pressure : PN16, PN40

Working Temperature : -30°C …180°C

Working Pressure : PN 40 bar(DN15..DN50 ) , 16 bar(DN65…DN200)
