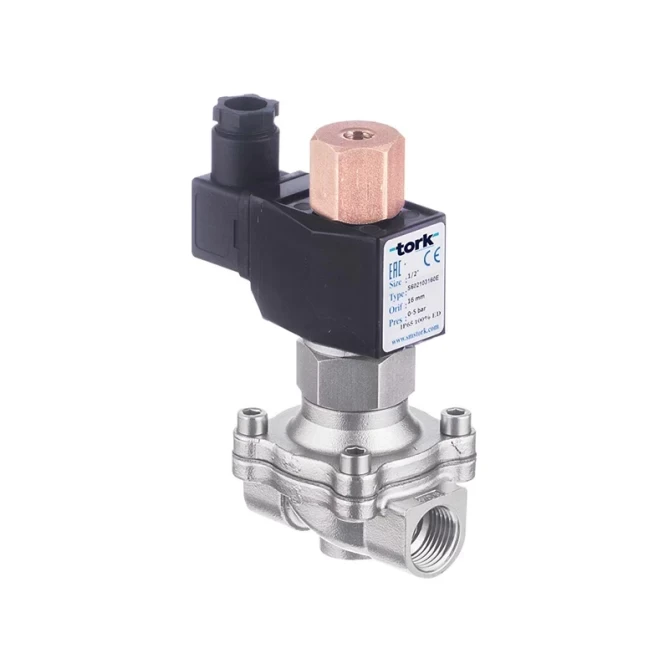

S6021 Stainless Steel Solenoid Valve

Application: Water, air, gas, acid, chemical material

Size: 3/8"…2"

Working Pressure: 0…5 Bar (AC); 0…3 Bar (DC)

Core, Tube: Stainless

Body :Stainless

Seal: NBR

Fluid Temperature: -10°C…80 °C

Position: Normally Open

Coil Voltage: 230V, 110V, 48V, 24V, 12V AC; 110V, 48V, 24V, 12 V DC

Protection Class: IP65 (on request Exproof )

Product Code

Connection Size

Orifice Size (mm)

Pressure (bar)

KV  lt/min

Seal / Oring

Weight (kg)

Min

Max

Option

S6021.02

3/8"

16

0

AC:5/DC:3

69

NBR

Viton

EPDM

1,15

S6021.03

1/2"

16

0

AC:5/DC:3

69

NBR

Viton

EPDM

1,1

S6021.04

3/4"

20

0

AC:5/DC:3

108

NBR

Viton

EPDM

1,12

S6021.05

1"

25

0

AC:5/DC:3

172

NBR

Viton

EPDM

1,3

S6021.06

1 1/4"

32

0

AC:5/DC:3

345

NBR

Viton

EPDM

3,55

S6021.07

1 1/2"

40

0

AC:5/DC:3

415

NBR

Viton

EPDM

3,45

S6021.08

2"

50

0

AC:5/DC:3

690

NBR

Viton

EPDM

3,88
