S5078 and S5079 Compressor Solenoid Valve

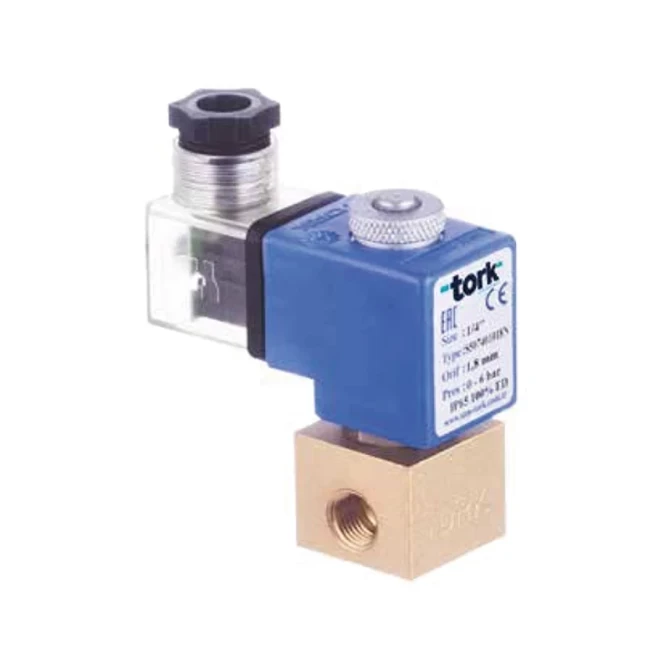

S5078 and S5079 Compressor Solenoid Valve gallery image 1
S5078 and S5079 Compressor Solenoid Valve-2
S5078 and S5079 Compressor Solenoid Valve gallery image 1
S5078 and S5079 Compressor Solenoid Valve-2

S5078 and S5079 Compressor Solenoid Valve

Application : Hot and oily air

Size : 1/8”…1/4”

Working Pressure : 0…10 Bar (it may change according to orifice)

Core, Tube : Stainless Steel

Body : Brass

Seal : Viton

Fluid Temperature : -10°C…160 °C

Position : Normally Closed (S5078), Normally Open (S5079)

Coil Voltage : 230V, 110V, 48V, 24V, 12V AC; 110V, 48V, 24V, 12 V DC

Protection Class : IP65 (on request Exproof )

PRODUCT CATALOG
GET OFFER

Product Code

Connection Size

Orifice Size (mm)

Pressure (bar)

KV lt/min

Seal / Oring

Weight (kg)

Min

Max

Option

S5078.00.010

1/8"

1

0

100

0,6

-10

Viton

0.5

S5078.00.018

1/8"

1,8

0

16

1,6

-10

Viton

0.5

S5078.00.025

1/8"

2,5

0

12

3,2

-10

Viton

0.5

S5078.00.030

1/8"

3

0

10

4,6

-10

Viton

0.5

S5078.00.040

1/8"

4

0

9

6,4

-10

Viton

0.5

S5078.01.010

1/4"

1

0

100

0,6

-10

Viton

0.49

S5078.01.018

1/4"

1,8

0

16

1,6

-10

Viton

0.49

S5078.01.025

1/4"

2,5

0

12

3,2

-10

Viton

0.49

S5078.01.030

1/4"

3

0

10

4,6

-10

Viton

0.49

S5078.01.040

1/4"

4

0

9

6,4

-10

Viton

0.49

S5078.01.050

1/4"

5

0

7

9,2

-10

Viton

0.49

S5079.00.018

1/8"

1,8

0

12

1,6

-10

Viton

0.51

S5079.00.025

1/8"

2,5

0

10

3,2

-10

Viton

0.51

S5079.00.030

1/8"

3

0

5

4,6

-10

Viton

0.51

S5079.01.018

1/4"

1,8

0

12

1,6

-10

Viton

0.5

S5079.01.025

1/4"

2,5

0

10

3,2

-10

Viton

0.5

S5079.01.030

1/4"

3

0

5

4,6

-10

Viton

0.5

S5078 and S5079 Series Compressor Solenoid Valves are 2/2-way, direct-acting, small-bodied solenoid valves. S5078 is normally closed, while S5079 is normally open.

The S50 series compressor solenoid valves are specially developed for hot, oily, and pressurized air, and are therefore mainly preferred in compressors. They can also be used in any line carrying hot, pressurized, and oily air. Solenoid valves should be used with a filter. Installing a filter at the valve inlet will extend the service life of the valve, especially in lines with contaminated fluids.

In case of malfunction or maintenance requirements, original TORK spare parts can be supplied from our company. All our products are 100% domestically manufactured.
