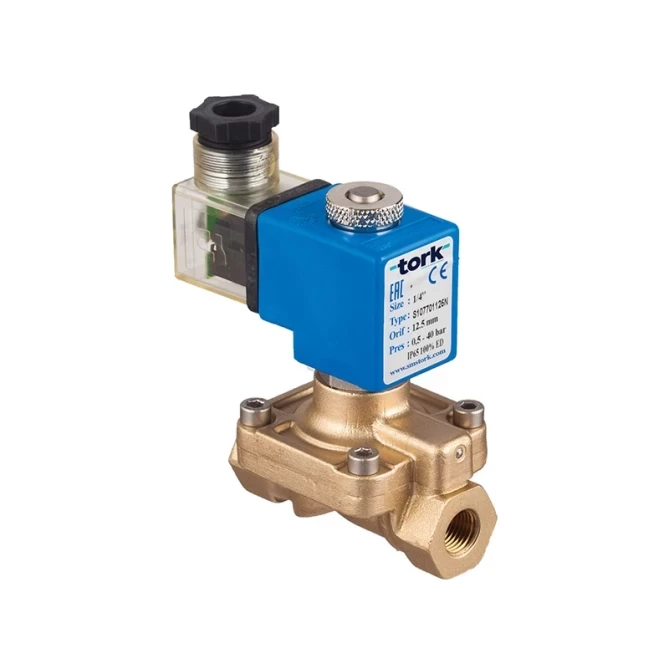

S1077 and S1078 General Purpose Solenoid Valve

Application : Air, water, gas

Size : 1/8", 1/4" Pilot operated

Working Pressure : 0,5…40 Bar

Core Tube : Stainless

Body : Brass

Seal : NBR, on request EPDM or VİTON

Working Temperature : -10°C…80 °C

Position : S1077 Normally Closed, S1078 Normally Open

Coil Voltage : 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC

Protection Class : IP65 (on request Exproof )

PRODUCT CATALOG

GET OFFER

Product Features
Product Description

Product Code	Connection Size	Orifice Size (mm)	Pressure (bar)		Kv lt/min	Sealing / Oring			Weight (kg)
Product Code	Connection Size	Orifice Size (mm)	Min	Max	Kv lt/min		Option		Weight (kg)
S1077.00	1/8"	12,5	0,5	40	48	NBR	Viton	EPDM	0,74
S1077.01	1/4"	12,5	0,5	40	48	NBR	Viton	EPDM	0,72

S1078.00	1/8"	12,5	0,5	40	48	NBR	Viton	EPDM	0,75
S1078.01	1/4"	12,5	0,5	40	48	NBR	Viton	EPDM	0,73

S1077 and S1078 Series General Purpose Solenoid Valves are high pressure, large orifice, pilot operated solenoid valves. S1077 is normally closed, S1078 is normally open model. Provides higher flow rate thanks to its large orifice feature.

When a voltage is applied to the coil in solenoid valves, the coil turns into an electromagnet and generates a magnetic force. This force causes the core inside the valve to move. According to this movement, the valve opens or closes. The fluid when it does not pass when there is no energy is called normally closed, and its shape when the fluid passes without energy is called normally open.

You can use S1077 and S1078 solenoid valves in paint industry, energy, gas, heating-cooling, machine manufacturers and petrochemical applications.

TORK Solenoid Valves are 100% domestic production. In case of maintenance or malfunction, you can obtain original TORK brand spare parts from our company.
