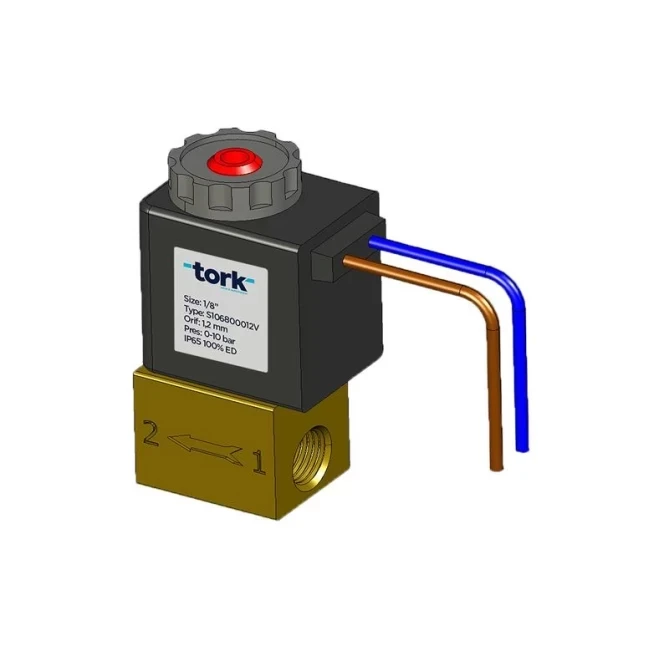

S1068 General Purpose Solenoid Valve gallery image 1
S1068 General Purpose Solenoid Valve gallery image 1

S1068 General Purpose Solenoid Valve

Application : Air, water, gas

Size : 1/8"

Working Pressure : 0…10 Bar

Core, Tube :Stainless Steel, Brass

Body : Brass

Seal : Viton

Working Temperature : -10°C…160 °C

Position : Normally Closed

Coil Voltage : 24V DC 9W

Protection Class : IP65

Product Code

Connection Size

Orifice

Size(mm)

Pressure(bar)

Kv

lt/min

Seal

/Oring

Weight(kg)

Min

Max

S106800012V

1/8"

1,2

0

10(under seat), 10(over seat)

0,8

Viton

0,14
