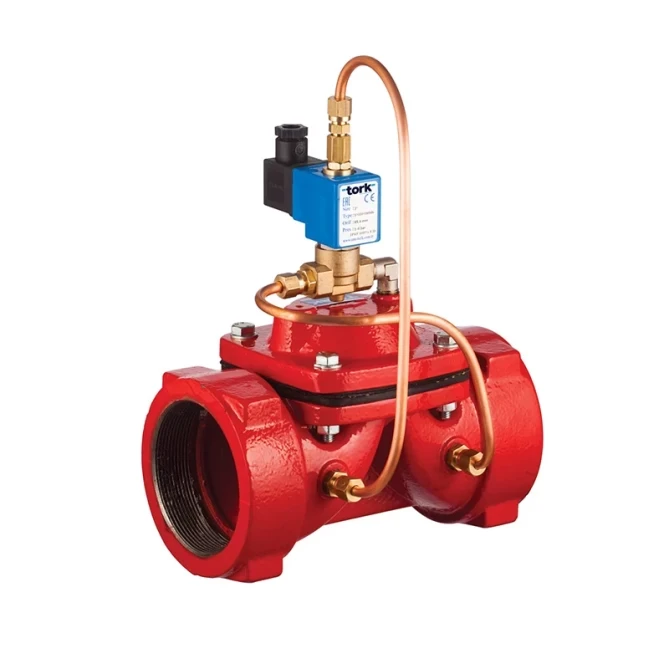

S1033 General Purpose Solenoid Valve

Application : Water

Size : 2 1/2".. 3"

Working Pressure : 1,5.. 16 bar (S1033)

Core Tube : Stainless

Body : Cast, Epoxy

Seal : NBR

Working Temperature : -10°C…80 °C

Position : Normally closed

Coil Voltage : 230V, 110V, 48V, 24V, 12V AC; 110V, 48V, 24V, 12 V DC

Protection Class : IP65 (on request Exproof)

Product

Code

Connection

Size

Orifice

Size (mm)

Pressure (bar)

Kv lt/min

Seal

/ Oring

Weight(kg)

Min

Max

S1030.09

2 1/2"

65

3.7

16

1266

NBR

6

S1030.10

3"

80

1.6

16

2333

NBR

10,3

The S1033 Series General Purpose Solenoid Valves are threaded cast iron body solenoid valves. The S1033 is normally closed. It is mostly preferred in agricultural machinery and irrigation applications. It is also used in treatment, energy, heating-cooling systems, machine manufacturing, and water applications. It is a full-bore valve, meaning it allows more fluid to pass per unit, thus providing higher flow rates. It is a solenoid valve designed for water.
