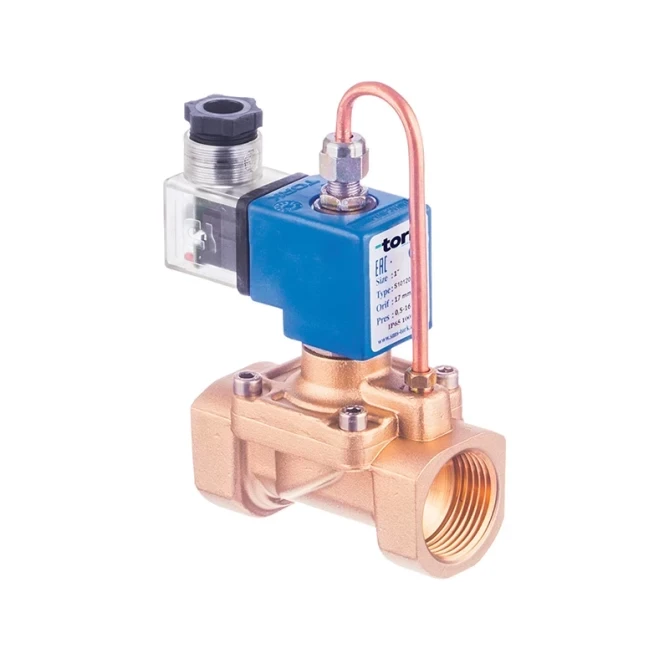

S1012 General Purpose Solenoid Valve

Application : Air, water, gas

Size : 3/8"…2"

Working Pressure : 0,5..16 bar (3/8"…1”); 0,5..12 bar (1 1/4"…2”)

Core Tube : Stainless

Body : Brass

Seal : NBR, on request EPDM, VITON

Working Temperature : -10°C…80 °C

Position : Normally Open

Coil Voltage : 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC

Protection Class : IP65 (on request Exproof)

PRODUCT CATALOG

GET OFFER

Product Features
Product Description

Product Code	Connection Size	Orifice Size (mm)	Pressure (bar)		Kv lt/min	Seal / Oring			Weight (kg)
Product Code	Connection Size	Orifice Size (mm)	Min	Max	Kv lt/min		Option		Weight (kg)
S1012.02	3/8"	12,5	0,5	16	48	NBR	Viton	EPDM	0,7
S1012.03	1/2"	14,5	0,5	16	70	NBR	Viton	EPDM	0,73
S1012.04	3/4"	17	0,5	16	90	NBR	Viton	EPDM	0,81
S1012.05	1"	17	0,5	16	90	NBR	Viton	EPDM	0,99
S1012.06	1 1/4"	30	0,5	12	250	NBR	Viton	EPDM	2,66
S1012.07	1 1/2"	39	0,5	12	370	NBR	Viton	EPDM	2,56
S1012.08	2"	46	0,5	12	450	NBR	Viton	EPDM	2,99

S1012 General Purpose Solenoid Valve is normally open, pilot operated and with tube. It is suitable for air, water and gas fluids.

Solenoid valves are the most preferred control elements in fluid control. It is used to provide flow in the line, to stop the flow, to adjust the dosage of the fluid or to mix two fluids. They are preferred for their long life, compact structure and low cost.

It is recommended to use solenoid valves with filters. If the fluid in the line contains particles such as dirt or dust, sand, this will damage the valve over time and shorten the life of the solenoid valve.
In case of failure, you can obtain original spare parts from our company.
