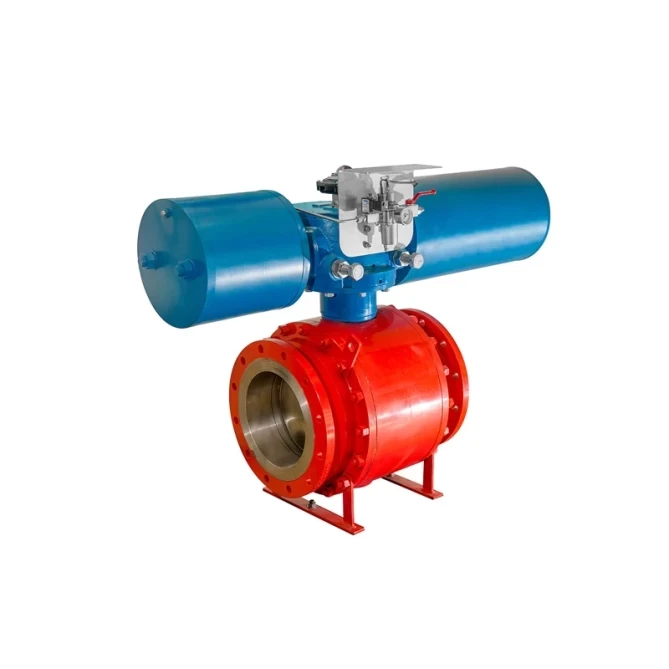

Heavy Duty Actuators gallery image 1
Heavy Duty Actuators
Heavy Duty Actuators gallery image 1
Heavy Duty Actuators

Heavy Duty Actuators

Application : Pneumatic, gas over oil

Size : RASY 32DA...RASY 200DA/ RASY 40SR...RASY 200SR

Supply Pressure : Pneumatic: 4-10 bar; Hydraulic: 10-90 bar

Output Torque Value : until 400.000 Nm (double acting); until 230.000 Nm (single acting)

Body : Cast steel

Body Coated : Electrostatic powder coating

Temperature : -20 ºC...80 ºC (on request -50 ºC...80 ºC or -20 ºC...160 ºC)

Valve Connection : ISO 5211 standards

PRODUCT CATALOG
GET OFFER

TORK Heavy Duty actuators are applied for fluid control where efficient performance is required in demanding plants such as oil and natural gas used in the heavy industry sector. While other actuators use rack & pinion mechanism, Heavy Duty Actuator uses a more durable and higher performance scoth yoke mechanism. Thanks to this product, high moments are obtained at high torques.

In places where there is no electricity and air, it can be opened and closed completely mechanically with the help of the fluid in the line where the product is installed. At the same time, with the gas over oil unit to be added, opening and closing can be performed with the gas-hydraulic control unit designed specifically for the application by using the pressure of the gas in the pipeline.

TORK Heavy Duty Actuators have a durable, compact and versatile design. It has quarter turn application and wide torque output. Application areas are on shore & off shore applications, oil and gas pipelines, oil and gas transportation, power generation plants, paper industry, petrochemical industry, oil and gas storage, water pipelines, refinery industry, thermal power plants.
