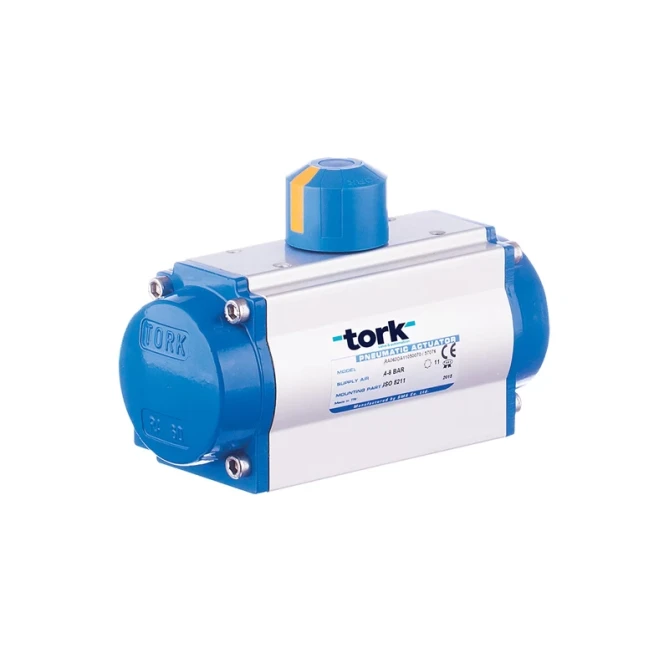

DA Series Double Acting Pneumatic Actuators

DA Series Double Acting Pneumatic Actuators gallery image 1
DA Series Double Acting Pneumatic Actuators gallery image 1

DA Series Double Acting Pneumatic Actuators

Application : Ball valve, butterfly valve, dampers on-off/proportional control, medical application (mask production, ventilatory devices etc.)

Size : RA 40DA...RA 350 DA

Supply Pressure : 4-8 bar

Output Torque Value : 9 Nm...5162 Nm (6 bar) torque value

Body : Extruded alümunium

Caps and Pistons : Extruded alümunium

Temperature : -10 ºC...80 ºC

Valve Connection : ISO 5211 standard

Limit Switch Connection : Namur standard, VDI/VDE 3845

Positioner Connection : Namur standard, VDI/VDE 3846

Solenoid Valve Connection : Namur standard, VDI/VDE 3847

Stroke Adjustment : Both direction open and close positions ( +,- 5)

Accessories : Switch box, positioner, manuel override

PRODUCT CATALOG
GET OFFER
STEP FILE

Double Acting Actuator

Torque Value  [Nm]

Valve Connection

Open Close Time

Air Consumption

Serie No

P:6 Bar

ISO5211

[Sec]

[Lt]

DA: Double Acting

Open

Close

Open

Close

TORK-RA32.DA

9

F03

0.1

0.1

0.03

0.02

TORK-RA40.DA

15

F03/F04/F05

0.22

0.26

0.09

0.16

TORK-RA52.DA

35

F04/F05/F07

0.27

0.33

0.17

0.28

TORK-RA60 .DA

39

F04/F05/F07

0.27

0.33

0.17

0.28

TORK-RA75. DA

93

F05/F07

0.39

0.48

0.5

0.79

TORK-RA80. DA

103

F05/F07

0.39

0.48

0.5

0.79

TORK-RA100. DA

168

F07/F10

0.52

0.63

0.73

1.15

TORK-RA120.DA

318

F07/F10

0.95.

1.15

1.61

2.45

TORK-RA143.DA

578

F10/F14

2.4

2.2

2.85

1.95

TORK-RA160.DA

765

F10/F14

2.6

2.3

3.25

2.56

TORK-RA200.DA

1500

F14/F16

3.4

3.2

6.41

5.5

TORK-RA270.DA

3042

F16

4.3

4.05

25

19.4

TORK-RA350.DA

5162

F16

5.2

4.9

25

19.4

Note: In actuator selection, the actuator torque value should be 25% higher than the valve torque value it will control.
